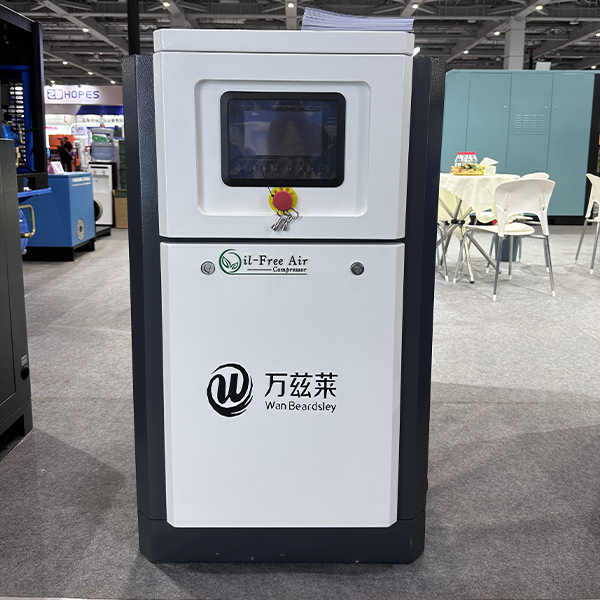

    • Oil-free Scroll Compressors

    Power: 2.2~37kW

    Air flow: 0.22~3.89m³/min

    Working pressure: 0.8~1.0Mpa

    The scroll compressor is a continuous volume compressor composed of a fixed involute spiral disk and an involute spiral disk that moves eccentrically in a spiraling motion. Its unique design makes the scroll compressor an energy-efficient, quiet, and maintenance-free compressor in today's world.
    • Description

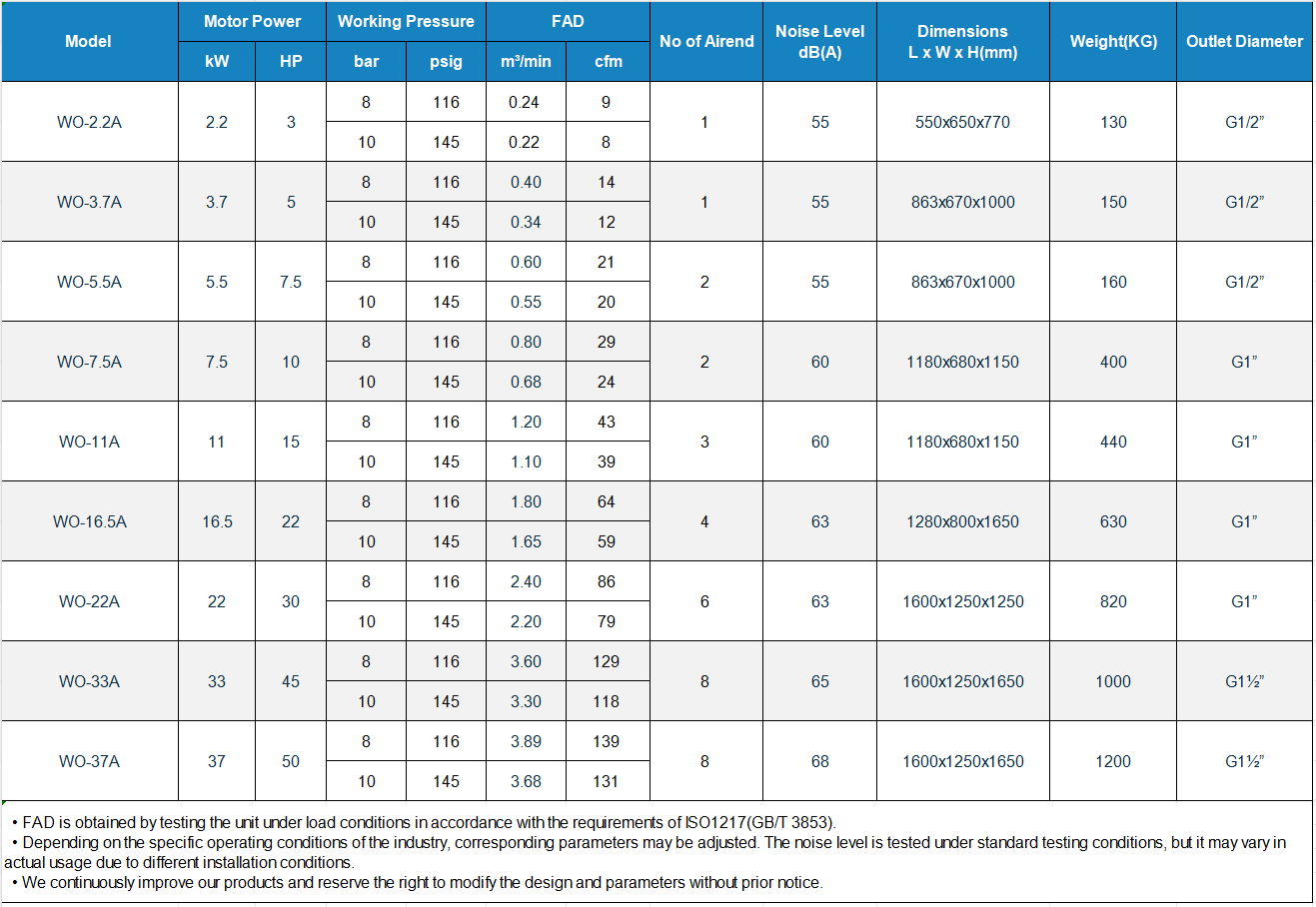

    • Specifications

    Features:

    · Longer lifespan, minimal wear, maintenance-free.

    · Known as "super quiet compressors," they operate smoothly with minimal vibration.

    · Innovative design offers compactness, low noise, lightweight, energy efficiency, and reliability.


    Operating principle：

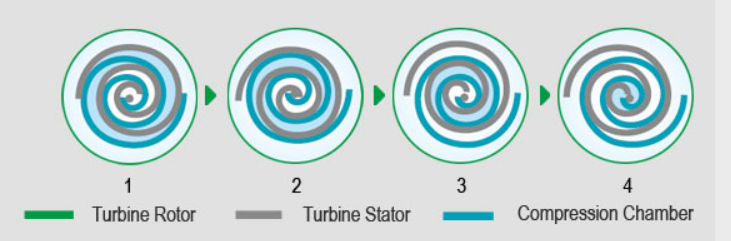

    The turbine rotor rotates through Pictures 1-2-3-4, drawing air into the space between the turbine stator and rotor. As the volume of the crescent-shaped compression chamber gradually reduces (with symmetrical points), the compressed air is released through the central air outlet.




    Airend

    · TÜV certified, oil-free with ISO-8573-1 Class 0 exhaust;

    · Low vibration under standard conditions,<7.1mm/S, the class leader;

    · Ultra-quiet,<60dB with 3.7kW single head;

    · Stable under high pressure, no output or lifespan decrease;

    · Maintenance-free, 10,000-hour cycle;

    · High efficiency, low power for superior energy efficiency.
